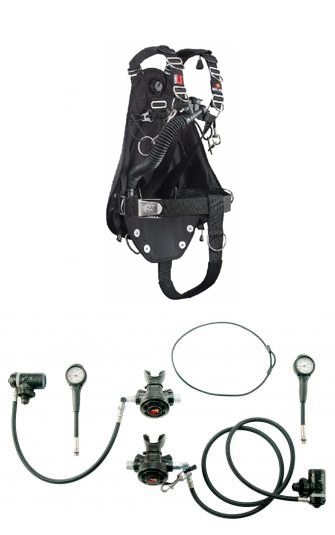

Dive Rite LS Sidemount Kit

Manufacturer Dive Rite

The Nomad LS 2.0 builds on its "L" series predecessors to be the most streamline and capable system in the family. The extremely durable exterior SuperFabric™ material is resistant to the elements of diving, whether diving on a quiet reef, pushing deep into a cave system, or scooting through a deck opening on a wreck dive. With the inflator and exhaust valves placed at the front/inside of the wing and not on the exterior, the valves are safe and free from exposure.

With 35 lbs (15.8 kg) of lift and a low profile design, the Nomad LS 2.0 performs in all levels of sidemount diving. With additional lift typically needed toward the lower back when sidemounting, the combination of it diamond shape and contour of the bladder create this lift achieving the optimum trim. A unique zero lift baffle at the top of the wing allows for air travel to the top dump, but prevents an air bubble from forming.

Tech Specs

• Outer shell: SuperFabric™ material with double ply 600 denier fabric
• Inner bladder: Heavy duty 420 denier nylon laminated
• Lift capacity: 35 lbs. (8 kg)
• Bailout bladder (optional) lift capacity: 10 lbs. (4.5 kg)
• Hose: 16-inch (30.4 cm) corrugated with inflate/deflate valve
• Exhaust valves: One pull-dump at top, center and one at bottom/left corner of wing; configurable with corrugated hose on left or right side of wing
• Cylinder attachment:
  • Adjustable Bungee System - 30" of bungee for each side adjustment along with a 2" Stainless Ring, medium quick link, and medium snap. Chokers include for use with Dive Rite's Ring Bungee and Choker method.
  • Butt plate: Reinforced nylon to provide the proper amount of rigidity to hold tanks in position and eliminate sag and two stainless steel rails for tank attachment
• Crotch strap: 2 in. (5 cm) padded strap with scooter ring
• Hardware: Marine grade stainless steel throughout
• D-rings: Custom low profile angled D-rings on chest, 2 on waist, and 2 each on shoulders straps
• Sizing: One size fits all (comes sized as large and can be adjusted as needed to resize)
• Weight: 5.7 lbs. (2.59 kg)
• Made in USA

DiveRite Sidemount XT Regs

Dive Rites braided Airflex hoses makes hose management easy and come standard with the XT Nomad set up. Six inch SPGs can be mounted up or down, depending on diver preference for viewing ease.

TECHNICAL DETAILS

• XT1 Din First Stage QTY:2
• XT2 Second Stage, QTY 2
• 60 or 84 inch braided Airflex LP hose
• 22-inch braided Airflex LP hose
• Right angle regulator adapter QTY:2
• 2 inch SPG with hose QTY:2
• Regulator necklace
• Small swivel bolt snap
• Hose clip retainer
• Dive Rite Regulator Bag Included
